Virtual Joystick for Arduino Based Controller
Joystick Controller
A joystick controller is an input device used to control video games, computer graphics, and other applications that require directional control. It typically consists of a stick that pivots on a base and reports its angle or direction to the device it is controlling. Joystick controllers can be found in various forms, including analog sticks, digital joysticks, and virtual joysticks.
Purpose and Uses
Gaming
Joystick controllers are widely used in gaming, providing an intuitive way to control characters, vehicles, and other elements within a game. They offer precise control over movement and actions, making them ideal for flight simulators, racing games, and other genres that require fine-tuned input.
Robotics
In robotics, joystick controllers are used to manually control robots. This can be particularly useful in teleoperation scenarios where a human operator needs to control a robot remotely. Joysticks provide a straightforward way to translate human input into robotic movement.
Industrial Applications
Joystick controllers are also used in various industrial applications, such as controlling cranes, forklifts, and other heavy machinery. They allow operators to perform complex maneuvers with ease and precision.
Assistive Technology
For individuals with disabilities, joystick controllers can serve as an alternative input method for computers and other devices. They can be customized to suit the user’s needs, providing greater accessibility and independence.
Virtual Reality (VR) and Augmented Reality (AR)
In VR and AR applications, joystick controllers are used to navigate virtual environments and interact with virtual objects. They enhance the immersive experience by providing a natural and responsive way to control the virtual world.
Virtual Joystick for Arduino

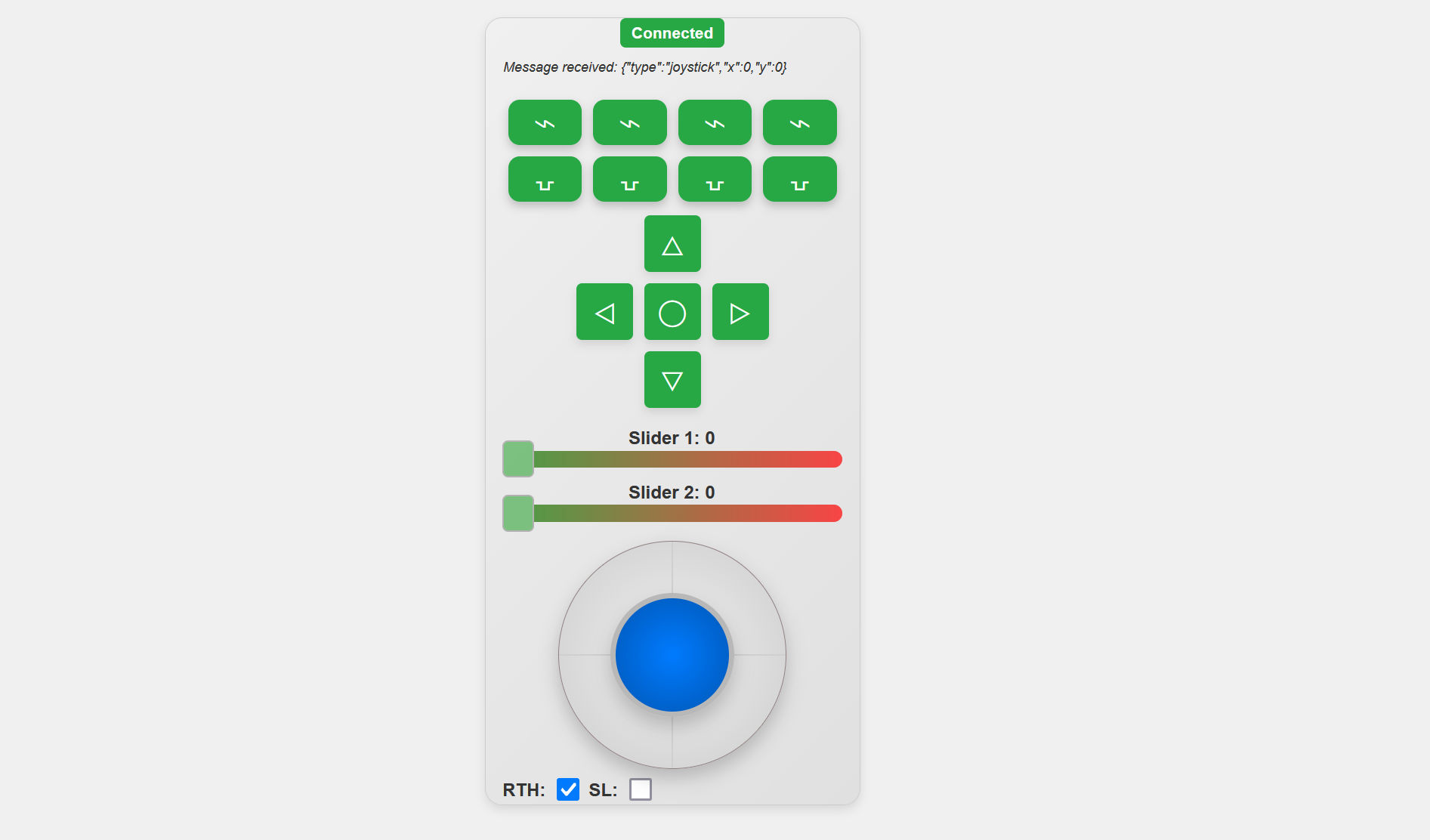

I designed a virtual joystick controller for use with ESP8266 and ESP32 microcontrollers. This innovative, web-based joystick leverages WebSockets to facilitate real-time communication with the server, ensuring responsive and seamless control. The virtual joystick has been rigorously tested with both ESP8266 and ESP32, demonstrating its versatility and reliability in various applications. By utilizing WebSockets, the controller provides instantaneous feedback and interaction, making it an ideal solution for projects requiring precise and real-time control. This advanced technology opens up new possibilities for remote operation, enhancing user experience and expanding the potential use cases for joystick controllers.
Using Virtual Joystick
Using a virtual joystick is straightforward. It employs a server-client model, but instead of using HTTP, it uses WebSocket for communication. WebSocket is fast, full-duplex, and real-time.
Adding Dependencies
To use this joystick, you need to install ESP32 or ESP8266 board support in the Arduino IDE. Install the support according to your needs and the availability of the board. Navigate to the Board Manager and install the appropriate board.
This project also depends on two external libraries: WebSocketsServer and ArduinoJson. You need to install both of these libraries to build and use the code.
Include the headers for the libraries as follows:
1
2
#include <WebSocketsServer.h>
#include <ArduinoJson.h>
Working of Joystick
The ESP32/8266 hosts the web page source code for the joystick. The ESP is configured in both station and AP modes, allowing you to connect directly to the ESP or use your Wi-Fi to connect to the controller. mDNS is also set up on the ESP with the hostname joystick. After the system is up and connected to Wi-Fi, you need to enter http://joystick.local in the browser of your mobile device or PC to access the joystick controller.
Building and Uploading
Select the correct board and COM port in Arduino ide and select the upload button to build and upload the below code. Before building and upload code you should consider changing the below mentioned setting in code.
- Select the correct board
1
2
3
4
5
6
// Define the board type
#define ESP8266_BOARD 1
#define ESP32_BOARD 2
// Select the board type here
#define BOARD_TYPE ESP32_BOARD // Change to ESP32_BOARD for ESP32
- WiFi SSID name and password
1
2
// Connect to the external WiFi network (STA mode)
WiFiMulti.addAP("SSID", "PASSWORD");
- AP name and password
1
2
// Set up AP mode
WiFi.softAP("Joystick", "password123"); // Set your AP SSID and password
- mDNS hostname if you want to use any other host name instead of
joystick.local
1
2
// Start mDNS service
String hostname = "joystick";
Code of Web-based Virtual Joystick
Code is hosted on github but I will also provide the code in this blog post.
Github Repo
Click on the link to go to github repo: GitHub Repo Link
Complete Code
Complete code for copy paste purpose is below.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
438
439
440
441
442
443
444
445
446
447
448
449
450
451
452
453
454
455
456
457
458
459
460
461
462
463
464
465
466
467
468
469
470
471
472
473
474
475
476
477
478
479
480
481
482
483
484
485
486
487
488
489
490
491
492
493
494
495
496
497
498
499
500
501
502
503
504
505
506
507
508
509
510
511
512
513
514
515
516
517
518
519
520
521
522
523
524
525
526
527
528
529
530
531
532
533
534
535
536
537
538
539
540
541
542
543
544
545
546
547
548
549
550
551
552
553
554
555
556
557
558
559
560
561
562
563
564
565
566
567
568
569
570
571
572
573
574
575
576
577
578
579
580
581
582
583
584
585
586
587
588
589
590
591
592
593
594
595
596
597
598
599
600
601
602
603
604
605
606
607
608
609
610
611
612
613
614
615
616
617
618
619
620
621
622
623
624
625
626
627
628
629
630
631
632
633
634
635
636
637
638
639
640
641
642
643
644
645
646
647
648
649
650
651
652
653
654
655
656
657
658
659
660
661
662
663
664
665
666
667
668
669
670
671
672
673
674
675
676
677
678
679
680
681
682
683
684
685
686
687
688
689
690
691
692
693
694
695
696
697
698
699
700
701
702
703
704
705
706
707
708
709
710
711
712
713
714
715
716
717
718
719
720
721
722
723
724
725
726
727
728
729
730
731
732
733
734
735
736
737
738
739
740
741
742
743
744
745
746
747
748
749
750
751
752
753
754
755
756
757
758
759
760
761
762
763
764
765
766
767
768
769
770
771
772
773
774
775
776
777
778
779
780
781
782
783
784
785
786
787
788
789
790
791
792
793
794
795
796
797
798
799
800
801
802
803
804
805
806
807
808
809
810
811
812
813
814
815
816
817
818
819
820
821
822
823
824
825
826
827
828
829
830
831
832
833
834
835
836
837
838
839
840
841
842
843
844
845
846
847
848
849
850
851
852
853
854
855
856
857
858
859
860
861
// Define the board type
#define ESP8266_BOARD 1
#define ESP32_BOARD 2
// Select the board type here
#define BOARD_TYPE ESP32_BOARD // Change to ESP32_BOARD for ESP32
#if BOARD_TYPE == ESP8266_BOARD
#include <ESP8266WiFi.h>
#include <ESP8266WebServer.h>
#include <ESP8266WiFiMulti.h>
#include <ESP8266mDNS.h>
ESP8266WebServer server(80); // Define server for ESP8266
ESP8266WiFiMulti WiFiMulti; // Define WiFiMulti for ESP8266
#elif BOARD_TYPE == ESP32_BOARD
#include <WiFi.h>
#include <WebServer.h>
#include <WiFiMulti.h>
#include <ESPmDNS.h>
WebServer server(80); // Define server for ESP32
WiFiMulti WiFiMulti; // Define WiFiMulti for ESP32
#endif
#include <WebSocketsServer.h>
#include <ArduinoJson.h>
const char index_html[] PROGMEM = R"rawliteral(
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta name="viewport" content="width=device-width, initial-scale=8.0" />
<title>ESP8266/32 Joystick Control</title>
<style>
body {
font-family: 'Arial', sans-serif;
display: flex;
flex-direction: column;
align-items: center;
justify-content: top;
height: 100vh;
margin: 2px;
padding: 5px;
background-color: #f0f0f0;
box-sizing: border-box;
}
.container {
display: flex;
flex-direction: column;
align-items: center;
gap: 5px;
padding: 0px 15px 0px 15px;
background: linear-gradient(135deg, #f0f0f0, #e0e0e0);
border: 1px solid #ccc;
border-radius: 15px;
box-shadow: 0 4px 8px rgba(0, 0, 0, 0.1);
margin: 10px auto;
max-width: 300px;
user-select: none;
height: auto;
}
.joystick-container {
position: relative;
width: 200px;
height: 200px;
background: radial-gradient(circle, #f0f0f0, #ccc);
border-radius: 50%;
box-shadow: 0 8px 16px rgba(0, 0, 0, 0.2);
border: 1px solid #918181;
display: flex;
justify-content: center;
align-items: center;
}
.joystick-container::before,
.joystick-container::after {
content: '';
position: absolute;
background-color: #cfcfcf;
}
.joystick-container::before {
width: 1px;
height: 100%;
top: 0;
left: 50%;
transform: translateX(-50%);
}
.joystick-container::after {
width: 100%;
height: 1px;
top: 50%;
left: 0;
transform: translateY(-50%);
}
.joystick {
position: absolute;
width: 100px;
height: 100px;
background: radial-gradient(circle, #007bff, #0056b3);
border-radius: 50%;
top: 50%;
left: 50%;
transform: translate(-50%, -50%);
box-shadow: 0 8px 16px rgba(0, 0, 0, 0.2);
touch-action: none;
border: 5px solid #b9b8b8;
z-index: 1;
}
/* .joystick::before {
content: '';
position: absolute;
width: 30px;
height: 30px;
background-color: radial-gradient(circle, #008f99, #01d8f5);;
border-radius: 50%;
top: 50%;
left: 50%;
transform: translate(-50%, -50%);
box-shadow: 0 2px 4px rgba(0, 0, 0, 0.2);
} */
.sliders {
display: flex;
flex-direction: column;
justify-content: center;
align-items: center;
padding: 10px;
gap: 10px;
}
.slider-container {
display: flex;
flex-direction: column;
align-items: center;
}
.slider {
-webkit-appearance: none;
appearance: none;
width: 300px;
height: 15px;
background: linear-gradient(to right, green, red);
outline: none;
opacity: 0.7;
transition: opacity .2s;
border-radius: 10px;
}
.slider:hover {
opacity: 1;
}
.slider::-webkit-slider-thumb {
-webkit-appearance: none;
appearance: none;
width: 25px;
height: 25px;
background: #4CAF50;
cursor: pointer;
border-radius: 5px;
}
.slider::-moz-range-thumb {
width: 25px;
height: 30px;
background: #4CAF50;
cursor: pointer;
border-radius: 5px;
}
.buttons {
display: flex;
justify-content: space-evenly;
width: 100%;
flex-wrap: wrap;
}
.button {
width: 65px;
height: 40px;
background-color: #28a745;
border: none;
color: white;
font-size: 24px;
border-radius: 10px;
box-shadow: 0 4px 8px rgba(0, 0, 0, 0.2);
cursor: pointer;
transition: background-color 0.3s ease;
margin: 5px;
}
.button.switch-on {
background-color: #ff0707;
}
.button.push-active {
background-color: #ff0707;
}
.common-label {
font-size: 16px;
font-weight: bold;
margin-right: 1px;
color: #333;
}
.toggle-checkbox {
width: 20px;
height: 20px;
cursor: pointer;
accent-color: #007bff;
}
.check-button-container {
display: flex;
justify-content: left;
width: 100%;
align-items: center;
gap: 5px;
}
.nav-arrows {
display: grid;
grid-template-columns: repeat(3, 50px);
grid-template-rows: repeat(3, 50px);
gap: 10px;
justify-content: center;
align-items: center;
margin: 2px auto;
width: max-content;
}
.arrow {
display: flex;
justify-content: center;
align-items: center;
width: 50px;
height: 50px;
background-color: #28a745;
color: white;
font-size: 24px;
border-radius: 5px;
cursor: pointer;
user-select: none;
box-shadow: 0 4px 8px rgba(0, 0, 0, 0.1);
transition: background-color 0.2s;
border: none;
}
.arrow:active{
outline: none;
background-color: #ff0707;
}
.arrow.up {
grid-column: 2;
grid-row: 1;
}
.arrow.left {
grid-column: 1;
grid-row: 2;
}
.arrow.stop {
grid-column: 2;
grid-row: 2;
}
.arrow.right {
grid-column: 3;
grid-row: 2;
}
.arrow.down {
grid-column: 2;
grid-row: 3;
}
.status-label {
font-size: 14px;
font-weight: bold;
padding: 5px 10px;
border-radius: 5px;
color: #fff;
user-select: none;
grid-column: 3;
grid-row: 1;
justify-content: center;
}
.status-connected {
background-color: #28a745;
}
.status-disconnected {
background-color: #dc3545;
}
.data-container {
display: flex;
flex-direction: column;
align-items: flex-start;
margin: 5px 0;
width: 100%;
max-width: 400px;
}
.data-box {
width: 100%;
height: 20px;
font-size: 12px;
font-family: 'Arial', sans-serif;
font-style: italic;
color: #333;
background-color: transparent;
border: 1px solid transparent;
border-radius: 5px;
resize: none;
box-shadow: none;
overflow-y: auto;
}
.data-box:focus {
outline: none;
border-color: #007bff;
}
</style>
</head>
<body>
<div class="container">
<div id="status" class="status-label status-disconnected">Disconnected</div>
<div class="data-container">
<div id="dataBox" class="data-box"></div>
</div>
<div class="buttons">
<button id="switch1" class="button" onclick="toggleSwitch(1)">⌁</button>
<button id="switch2" class="button" onclick="toggleSwitch(2)">⌁</button>
<button id="switch3" class="button" onclick="toggleSwitch(3)">⌁</button>
<button id="switch4" class="button" onclick="toggleSwitch(4)">⌁</button>
<button id="push1" class="button" onmousedown="sendPushData(1, 1)" onmouseup="sendPushData(1, 0)" ontouchstart="sendPushData(1, 1)" ontouchend="sendPushData(1, 0)">⍽</button>
<button id="push2" class="button" onmousedown="sendPushData(2, 1)" onmouseup="sendPushData(2, 0)" ontouchstart="sendPushData(2, 1)" ontouchend="sendPushData(2, 0)">⍽</button>
<button id="push3" class="button" onmousedown="sendPushData(3, 1)" onmouseup="sendPushData(3, 0)" ontouchstart="sendPushData(3, 1)" ontouchend="sendPushData(3, 0)">⍽</button>
<button id="push4" class="button" onmousedown="sendPushData(4, 1)" onmouseup="sendPushData(4, 0)" ontouchstart="sendPushData(4, 1)" ontouchend="sendPushData(4, 0)">⍽</button>
</div>
<div class="nav-arrows">
<button id="arrow-up" class="arrow up" onmousedown="sendPushData(5, 1)" onmouseup="sendPushData(5, 0)" ontouchstart="sendPushData(5, 1)" ontouchend="sendPushData(5, 0)">△</button>
<button id="arrow-left" class="arrow left" onmousedown="sendPushData(8, 1)" onmouseup="sendPushData(8, 0)" ontouchstart="sendPushData(8, 1)" ontouchend="sendPushData(8, 0)">◁</button>
<button id="arrow-stop" class="arrow stop" onmousedown="sendPushData(6, 1)" onmouseup="sendPushData(6, 0)" ontouchstart="sendPushData(6, 1)" ontouchend="sendPushData(6, 0)">◯</button>
<button id="arrow-right" class="arrow right" onmousedown="sendPushData(9, 1)" onmouseup="sendPushData(9, 0)" ontouchstart="sendPushData(9, 1)" ontouchend="sendPushData(9, 0)">▷</button>
<button id="arrow-down" class="arrow down" onmousedown="sendPushData(7, 1)" onmouseup="sendPushData(7, 0)" ontouchstart="sendPushData(7, 1)" ontouchend="sendPushData(7, 0)">▽</button>
</div>
<div class="sliders">
<div class="slider-container">
<label class="common-label" id="labelslider1" for="slider1">Slider 1: 0</label>
<input type="range" id="slider1" class="slider" min="0" max="100" value="0" oninput="sendSlider1Data()">
</div>
<div class="slider-container">
<label class="common-label" id="labelslider2" for="slider2">Slider 2: 0</label>
<input type="range" id="slider2" class="slider" min="0" max="100" value="0" oninput="sendSlider2Data()">
</div>
</div>
<div id="controllerContainer">
<div class="joystick-container" id="joystickContainer">
<div class="joystick" id="joystick"></div>
</div>
</div>
<div class="check-button-container">
<label class="common-label" for="toggle-return">RTH:</label>
<input class="toggle-checkbox" type="checkbox" id="toggle-return" checked onchange="handleToggleChange()">
<label class="common-label" for="toggle-sl">SL:</label>
<input class="toggle-checkbox" type="checkbox" id="toggle-sl" unchecked onchange="handleSL()">
</div>
</div>
<script>
const joystick = document.getElementById('joystick');
const joystickContainer = document.querySelector('.joystick-container');
const slider1 = document.getElementById('slider1');
const slider2 = document.getElementById('slider2');
const toggleReturn = document.getElementById('toggle-return');
const statusLabel = document.getElementById('status');
let joystickOffset = { x: 0, y: 0 };
let isDragging = false;
let xPos = 0;
let yPos = 0;
let socket;
// Initialize WebSocket
function initWebSocket() {
socket = new WebSocket('ws://' + location.hostname + ':81');
socket.onopen = function() {
console.log("WebSocket connection opened");
updateStatus(true);
};
socket.onmessage = function(event) {
console.log("Message from server: ", event.data);
updateDataBox(event.data);
};
socket.onclose = function() {
console.log("WebSocket connection closed");
updateStatus(false);
};
socket.onerror = function(error) {
console.error("WebSocket error: ", error);
updateStatus(false);
};
}
function updateDataBox(data) {
const dataBox = document.getElementById('dataBox');
dataBox.textContent = data;
}
function sendJoystickData(x, y) {
const data = JSON.stringify({ type: 'joystick', x: Math.round(x*125), y: Math.round(y*(125)) });
socket.send(data);
}
function sendSlider1Data() {
const data = JSON.stringify({ slider1: slider1.value });
document.getElementById('labelslider1').innerHTML = "Slider 1: " + slider1.value;
socket.send(data);
}
function sendSlider2Data() {
const data = JSON.stringify({ slider2: slider2.value });
document.getElementById('labelslider2').innerHTML = "Slider 2: " + slider2.value;
socket.send(data);
}
function initSliders() {
document.getElementById('slider1').value = 0;
document.getElementById('slider2').value = 0;
}
initSliders();
function toggleSwitch(id) {
const button = document.getElementById('switch' + id);
const isOn = button.classList.toggle('switch-on');
const value = isOn ? 1 : 0;
const data = JSON.stringify({ type: 'switch', id: id, value: value });
socket.send(data);
}
function sendPushData(id, value) {
const button = document.getElementById('push' + id);
const data = JSON.stringify({ type: 'push', id: id, value: value });
socket.send(data);
if (value === 1) {
button.classList.add('push-active');
} else {
button.classList.remove('push-active');
}
}
joystick.addEventListener('mousedown', startDrag);
joystick.addEventListener('touchstart', startDrag, { passive: true });
function startDrag(event) {
event.preventDefault();
isDragging = true;
joystick.style.transition = 'left 0s, top 0s';
document.addEventListener('mousemove', dragJoystick);
document.addEventListener('mouseup', stopDrag);
document.addEventListener('touchmove', dragJoystick, { passive: true });
document.addEventListener('touchend', stopDrag);
const rect = joystickContainer.getBoundingClientRect();
if (event.touches) {
joystickOffset.x = event.touches[0].clientX - rect.left - xPos;
joystickOffset.y = event.touches[0].clientY - rect.top - yPos;
} else {
joystickOffset.x = event.clientX - rect.left - xPos;
joystickOffset.y = event.clientY - rect.top - yPos;
}
}
function dragJoystick(event) {
if (!isDragging) return;
const rect = joystickContainer.getBoundingClientRect();
const limitRadius = rect.width / 2 - joystick.offsetWidth / 2;
if (event.touches) {
xPos = event.touches[0].clientX - rect.left - joystickOffset.x;
yPos = event.touches[0].clientY - rect.top - joystickOffset.y;
} else {
xPos = event.clientX - rect.left - joystickOffset.x;
yPos = event.clientY - rect.top - joystickOffset.y;
}
const distance = Math.sqrt(xPos * xPos + yPos * yPos);
if (distance > limitRadius) {
const angle = Math.atan2(yPos, xPos);
xPos = limitRadius * Math.cos(angle);
yPos = limitRadius * Math.sin(angle);
}
joystick.style.left = `${xPos + rect.width / 2}px`;
joystick.style.top = `${yPos + rect.height / 2}px`;
sendJoystickData(xPos / limitRadius, yPos / limitRadius);
}
function stopDrag() {
isDragging = false;
document.removeEventListener('mousemove', dragJoystick);
document.removeEventListener('mouseup', stopDrag);
document.removeEventListener('touchmove', dragJoystick);
document.removeEventListener('touchend', stopDrag);
joystick.style.transition = 'left 0.4s, top 0.4s';
if (toggleReturn.checked) {
sendJoystickData(0, 0);
xPos = 0;
yPos = 0;
joystick.style.left = '50%';
joystick.style.top = '50%';
}
}
function updateStatus(isConnected) {
if (isConnected) {
statusLabel.textContent = 'Connected';
statusLabel.classList.remove('status-disconnected');
statusLabel.classList.add('status-connected');
} else {
statusLabel.textContent = 'Disconnected';
statusLabel.classList.remove('status-connected');
statusLabel.classList.add('status-disconnected');
}
}
function handleToggleChange() {
if (toggleReturn.checked) {
sendJoystickData(0, 0);
xPos = 0;
yPos = 0;
joystick.style.left = '50%';
joystick.style.top = '50%';
} else {
console.log('Return to Home is disabled');
}
}
function handleSL() {
if (document.getElementById('toggle-sl').checked) {
document.querySelector('.container').style.touchAction = 'none';
} else {
document.querySelector('.container').style.touchAction = 'auto';
}
}
//alert("By defult, the return to home is enabled. If you want to disable it, uncheck the RTH checkbox. The SL checkbox is for disabling the touch action of the screen. If you want to enable the touch action, uncheck the SL checkbox.");
window.onload = initWebSocket;
</script>
</body>
</html>
)rawliteral";
#if BOARD_TYPE == ESP8266_BOARD
unsigned long lastMDNSUpdate = 0;
const unsigned long MDNS_UPDATE_INTERVAL = 100; // Update mDNS every 100 mili second
#endif
WebSocketsServer webSocket = WebSocketsServer(81);
#define in1 23 // 14
#define in2 22 // 12
#define in3 19 // 13
#define in4 18 // 15
#define enA 17 // 17
#define enB 16 // 16
// setting PWM properties
const int freq = 500;
const int resolution = 8;
int speedSet = 100;
void moveControl(int x, int y, uint8_t num)
{
int analogWriteX = map(abs(x), 0, 127, 10, speedSet);
int analogWriteY = map(abs(y), 0, 127, 10, speedSet);
int buffer = 30;
// Move Forward
if (y <= -buffer)
{
webSocket.sendTXT(num, "Moving Forward");
ledcWrite(enA, analogWriteY);
ledcWrite(enB, analogWriteY);
digitalWrite(in1, LOW);
digitalWrite(in2, HIGH);
digitalWrite(in3, LOW);
digitalWrite(in4, HIGH);
}
// Move Forward Right
if (x >= buffer && y <= -buffer)
{
webSocket.sendTXT(num, "Moving Forward Right");
ledcWrite(enA, analogWriteX);
ledcWrite(enB, analogWriteY);
digitalWrite(in1, LOW);
digitalWrite(in2, HIGH);
digitalWrite(in3, LOW);
digitalWrite(in4, HIGH);
}
// Move Forward Left
if (x <= -buffer && y <= -buffer)
{
webSocket.sendTXT(num, "Moving Forward Left");
ledcWrite(enA, analogWriteY);
ledcWrite(enB, analogWriteX);
digitalWrite(in1, LOW);
digitalWrite(in2, HIGH);
digitalWrite(in3, LOW);
digitalWrite(in4, HIGH);
}
// No Move
if (y == 0 && x == 0)
{
webSocket.sendTXT(num, "STOP");
ledcWrite(enA, analogWriteY);
ledcWrite(enB, analogWriteY);
digitalWrite(in1, LOW);
digitalWrite(in2, LOW);
digitalWrite(in3, LOW);
digitalWrite(in4, LOW);
}
// Move Backward
if (y >= buffer && x <= buffer)
{
webSocket.sendTXT(num, "Moving Backward");
ledcWrite(enA, analogWriteY);
ledcWrite(enB, analogWriteY);
digitalWrite(in1, HIGH);
digitalWrite(in2, LOW);
digitalWrite(in3, HIGH);
digitalWrite(in4, LOW);
}
// Move Backward Right
if (y >= buffer && x >= buffer)
{
webSocket.sendTXT(num, "Moving Backward Right");
ledcWrite(enA, analogWriteX);
ledcWrite(enB, analogWriteY);
digitalWrite(in1, HIGH);
digitalWrite(in2, LOW);
digitalWrite(in3, HIGH);
digitalWrite(in4, LOW);
}
// Move Backward Left
if (y >= buffer && x <= -buffer)
{
webSocket.sendTXT(num, "Moving Backward Left");
ledcWrite(enA, analogWriteY);
ledcWrite(enB, analogWriteX);
digitalWrite(in1, HIGH);
digitalWrite(in2, LOW);
digitalWrite(in3, HIGH);
digitalWrite(in4, LOW);
}
}
void handleRoot()
{
server.send(200, "text/html", index_html);
}
void handleWebSocketMessage(uint8_t *data, size_t len, uint8_t num)
{
// Allocate the JSON document
StaticJsonDocument<200> doc;
// Deserialize the JSON document
DeserializationError error = deserializeJson(doc, data, len);
// Test if parsing succeeds
if (error)
{
Serial.print(F("deserializeJson() failed: "));
Serial.println(error.f_str());
return;
}
// Handle the received data based on type
if (doc["type"] == "joystick")
{
int x = doc["x"].as<int>();
int y = doc["y"].as<int>();
moveControl(x, y, num);
}
else if (doc["slider1"].as<int>() >= 0)
{
int sliderValue = doc["slider1"].as<int>();
speedSet = map(sliderValue, 0, 100, 100, 255);
webSocket.sendTXT(num, "Speed set to: " + String(speedSet));
}
else if (doc["slider2"].as<int>() >= 0)
{
int sliderValue = doc["slider2"].as<int>();
webSocket.sendTXT(num, "Slider 2 value: " + String(sliderValue));
}
else if (doc["type"] == "switch")
{
int id = doc["id"].as<int>();
int value = doc["value"].as<int>();
webSocket.sendTXT(num, "Switch data received: ID: " + String(id) + " Value: " + String(value));
}
else if (doc["type"] == "push")
{
int id = doc["id"].as<int>();
int value = doc["value"].as<int>();
webSocket.sendTXT(num, "Push button data received: ID: " + String(id) + " Value: " + String(value));
}
else
{
Serial.println("Unknown data received");
webSocket.sendTXT(num, "Unknown data received");
}
}
void onWebSocketEvent(uint8_t num, WStype_t type, uint8_t *payload, size_t length)
{
switch (type)
{
case WStype_DISCONNECTED:
Serial.printf("[%u] Disconnected!\n", num);
break;
case WStype_CONNECTED:
{
IPAddress ip = webSocket.remoteIP(num);
Serial.printf("[%u] Connection from ", num);
Serial.println(ip.toString());
break;
}
case WStype_TEXT:
//webSocket.sendTXT(num, payload);
handleWebSocketMessage(payload, length, num);
break;
case WStype_BIN:
Serial.printf("[%u] get binary length: %u\n", num, length);
break;
case WStype_PING:
Serial.printf("[%u] Received PING\n", num);
break;
case WStype_PONG:
Serial.printf("[%u] Received PONG\n", num);
break;
case WStype_ERROR:
Serial.printf("[%u] WebSocket Error!\n", num);
break;
}
}
void setup()
{
Serial.begin(115200);
// configure LED PWM functionalitites
//ledcSetup(ledChannel, freq, resolution);
// attach the channel to the GPIO to be controlled
ledcAttach(enA, freq, resolution);
ledcAttach(enB, freq, resolution);
pinMode(in1, OUTPUT);
pinMode(in3, OUTPUT);
pinMode(in2, OUTPUT);
pinMode(in4, OUTPUT);
digitalWrite(in1, LOW);
digitalWrite(in3, LOW);
digitalWrite(in2, LOW);
digitalWrite(in4, LOW);
// Connect to the external WiFi network (STA mode)
WiFiMulti.addAP("SSID", "PASSWORD");
// Wait for the ESP to connect to WiFi
while (WiFiMulti.run() != WL_CONNECTED)
{
delay(100);
}
// Print the IP address
Serial.print("Connected to ");
Serial.println(WiFi.SSID());
Serial.print("IP address: ");
Serial.println(WiFi.localIP());
// Start mDNS service
String hostname = "joystick";
if (MDNS.begin(hostname.c_str()))
{
Serial.printf("mDNS responder started with hostname: %s.local\n", hostname.c_str());
}
else
{
Serial.println("Error setting up mDNS responder!");
}
// Set up AP mode
WiFi.softAP("Joystick", "password123"); // Set your AP SSID and password
IPAddress myIP = WiFi.softAPIP();
Serial.print("AP IP address: ");
Serial.println(myIP);
// Start the HTTP server
server.on("/", handleRoot);
server.begin();
Serial.println("HTTP server started");
// Start the WebSocket server
webSocket.begin();
webSocket.onEvent(onWebSocketEvent);
Serial.println("WebSocket server started");
}
void loop()
{
server.handleClient();
webSocket.loop();
#if BOARD_TYPE == ESP8266_BOARD
// Handle mDNS queries at a reduced frequency
unsigned long currentMillis = millis();
if (currentMillis - lastMDNSUpdate >= MDNS_UPDATE_INTERVAL)
{
lastMDNSUpdate = currentMillis;
MDNS.update();
}
#endif
}
This post is licensed under CC BY 4.0 by the author.
